VCDS -- Windows Based VAG/VAS Emulator Running on Windows 7 x86

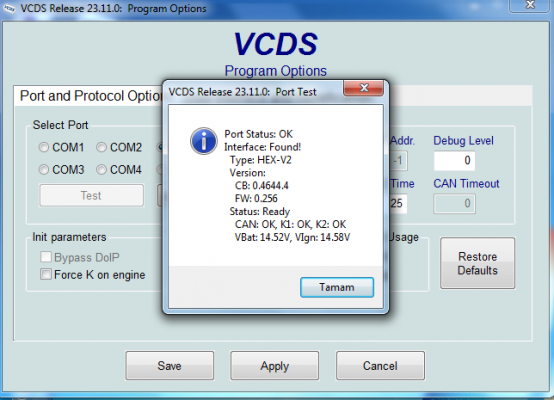

VCDS Version: 23.11.0.0 HEX-V2 CB: 0.4644.4
Data version: 20231027 DS351.0
www.Ross-Tech.com
VIN: xxxxxxxxxxxxxxxxx License Plate:
Chassis Type: 5F-SE37 (3Q0)
Scan: 01 02 03 05 08 09 10 13 15 17 19 2B 36 42 44 4B 52 5F 6D A5
BB BC CA
VIN: xxxxxxxxxxxxxxxxx Mileage: 32579km-20243miles
01-Engine -- Status: Malfunction 0010
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
05-Acc/Start Auth. -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: Malfunction 0010
13-Auto Dist. Reg -- Status: OK 0000
15-Airbags -- Status: OK 0000
17-Instruments -- Status: Malfunction 0010
19-CAN Gateway -- Status: Malfunction 0010
2B-Steer. Col. Lock -- Status: OK 0000
33-Flux Capacitor -- Status: Malfunction 0010
36-Seat Mem. Drvr -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000

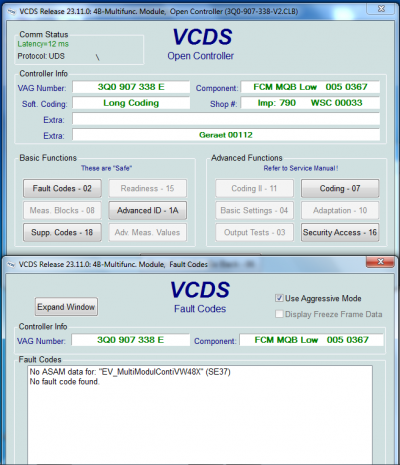

4B-Multifunc. Module -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
5F-Information Electr. -- Status: OK 0000
6D-Trunk Elect. -- Status: OK 0000
A5-Frt Sens. Drv. Assist -- Status: OK 0000
BB-Door Rear Drv -- Status: Cannot be reached 0100
BC-Door Rear Pass -- Status: Cannot be reached 0100

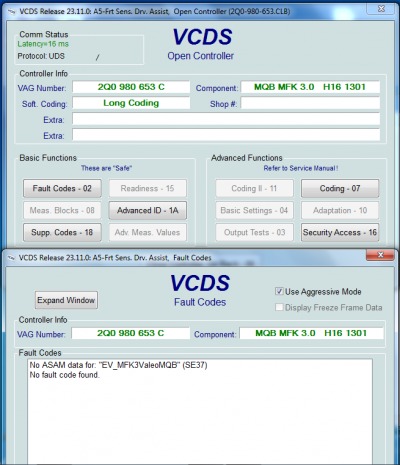

CA-Sunroof -- Status: OK 0000
-------------------------------------------------------------------------------
Address 01: Engine (J623-DPCA) Labels:. 04E-907-309-V1.clb
Part No SW: 05E 906 018 CK HW: 05E 907 309 H
Component: R4 1.5l TFS H20 0863
Revision: 8AH20000 Dataset Number: V03935323HY 0001 CVN: 3767362F
Coding: 0125003223641D0830000000000000000000000000000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_ECM15TFS01105E906018CK 004005
ROD: EV_ECM15TFS01105E906018CK_004.rod
VCID: 70B9C25C8A24076ADF3-8024
VINID: 9A38EAAAA156A9E18500508204CBADB380
1 Fault Found:
23765 - Control unit for information electronics 1
U1054 00 [00100000] - No Communication
[Tip-TNF 213111]
Intermittent - Not Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 2
Reset counter: 17
Mileage: 32503 km
Date: 2024.04.08
Time: 14:36:50
Engine RPM: 1195.00 /min
Normed load value: 17.6 %
Vehicle speed: 0 km/h
Coolant temperature: 30 C
Intake air temperature: 20 C
Ambient air pressure: 1010 mbar
Voltage terminal 30: 14.480 V
Unlearning counter according OBD: 17
Outside temperature: 22 C
Absolute intake pressure: 56 kPa abs
Engine torque: 32.1 Nm
Fuel: tank fill level: 39.0 l
Oxygen sensor B1: sensor 1: specified value: 1.0000
Particulate filter: loading stage: 0
Overrun cut-off-Bits 0-7: 0
Readiness: 0000 0000
-------------------------------------------------------------------------------
Address 02: Auto Trans (J743) Labels: 0CW-927-769.clb
Part No SW: 0CW 300 051 M HW: 0AM 927 769 N
Component: GSG DQ200G2_M H07 1928
Revision: 00007009 Serial number: CU502107155364 CVN: 54E080E7
Coding: 0014
Shop #: WSC 00033 790 00122
ASAM Dataset: EV_TCMDQ200021 001001
ROD: EV_TCMDQ200021_VW26.rod
VCID: 40D9529CFA04D7EA6F3-8014
No fault code found.
-------------------------------------------------------------------------------
Address 03: ABS Brakes (J104) Labels: 5Q0-907-379-IPB-V1.clb
Part No SW: 5Q0 614 517 GB HW: 5Q0 614 517 BP
Component: ESC H35 0114
Revision: 00000000 Serial number: 61831000001491 Dataset Number: V03935332JW 0002
Coding: 21EE6A92902024718779060262C42484560924E1604624733822F074C20A4B0B00002D641212131A1E35351919323200
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_Brake1UDSContiMK100IPB 049015
ROD: EV_Brake1UDSContiMK100IPB_049.rod
VCID: 77ABF940EF4A50521E9-8022

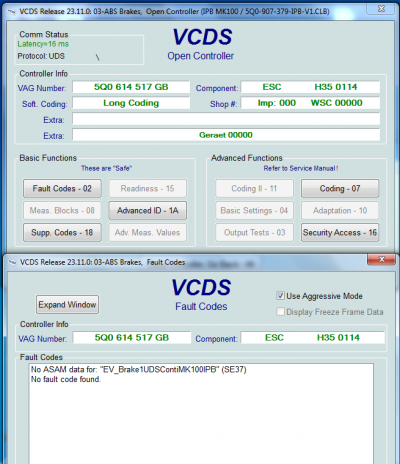

No ASAM data for: "EV_Brake1UDSContiMK100IPB" (SE37)
No fault code found.
-------------------------------------------------------------------------------
Address 05: Acc/Start Auth. (J518) Labels:| 5Q0-959-435.clb
Part No SW: 3Q0 959 435 Q HW: 3Q0 959 435 Q
Component: VWKESSYMQB 037 1400
Revision: 00037000 Serial number: 0581159802 Dataset Number: V03935332QE 0001
Coding: 132C0C0707
Shop #: WSC 00033 790 00122
ASAM Dataset: EV_KessyHellaMQBAB 004055
ROD: EV_KessyHellaMQBAB.rod
VCID: 48C94ABCD234EFAAA73-801C
No fault code found.
-------------------------------------------------------------------------------
Address 08: Auto HVAC (J255) Labels:| 5G0-907-044.clb
Part No SW: 5F0 907 044 AS HW: 5F0 907 044 AS
Component: Climatronic H07 2401
Revision: 00001K10 Dataset Number: V03935308KA 0007
Coding: 06000024200114011105004C1210D024
Shop #: WSC 12345 123 61029
ASAM Dataset: EV_ACClimaBHBVW37X 006151
ROD: EV_ACClimaBHBVW37X_006_VW37.rod
VCID: 77ABF940EF4A50521E9-8022
Fresh air blower control module (front):
A/C pressure/coolant temperature sensor:
Air quality sensor:
No fault code found.
-------------------------------------------------------------------------------

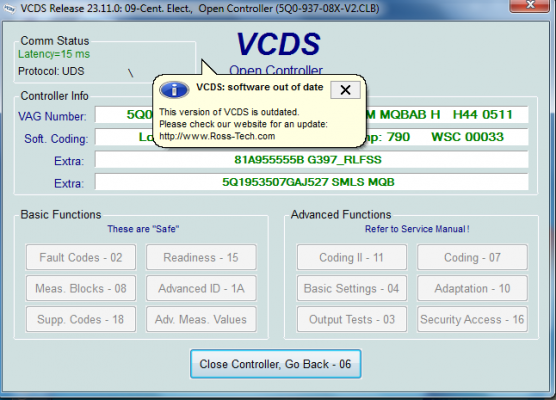

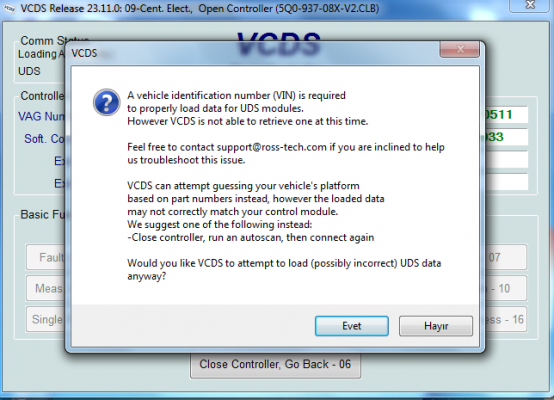

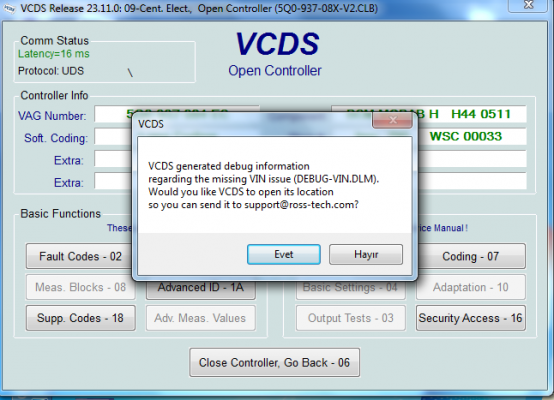

Address 09: Cent. Elect. (J519) Labels:. 5Q0-937-08X-V2.clb
Part No SW: 5Q0 937 084 EC HW: 5Q0 937 084 EC
Component: BCM MQBAB H H44 0511
Serial number: 00102119001191 Dataset Number: V03935333EA 0007
Coding: 000000000000000000000000000000000000000000000000000000000000
Shop #: WSC 00033 790 00122
ASAM Dataset: EV_BCMMQB 022001
ROD: EV_BCMBOSCH_022_VW27.rod
VCID: 7DA7EB68CD767A02445-8028
Rain/Light Recognition Sensor:
Subsystem 1 - Part No SW: 81A 955 555 B HW: 81A 955 555
Component: G397_RLFSS H06 0004
Serial number: 41933031X81A955555B0
Coding: 80007E
Steering Column Switch:
Subsystem 2 - Part No SW: 5Q1 953 507 GA HW: 5Q1 953 549 F
Component: J527 SMLS MQB 005 0080
Serial number: 00000024062104221969

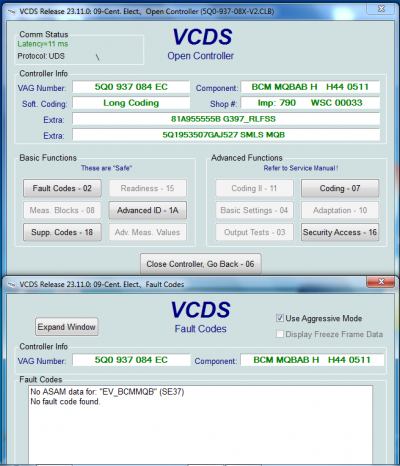

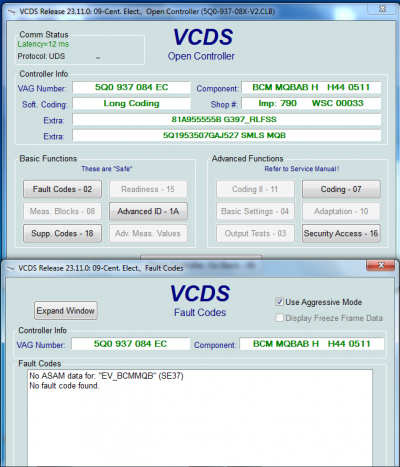

No ASAM data for: "EV_BCMMQB" (SE37)
No fault code found.
-------------------------------------------------------------------------------
Address 10: Park/Steer Assist (J791) Labels:| 5Q0-919-298.clb
Part No SW: 5QA 919 298 K HW: 5QA 919 298 A
Component: PLA 3.0 12K H08 0073
Serial number: 000150057321190 Dataset Number: V03935336LA 0003
Coding: 8271563851
Shop #: WSC 00033 790 00122
ASAM Dataset: EV_EPHVA2CAU3700000 009055
ROD: EV_EPHVA2CAU3700000_VW41.rod
VCID: 58E99AFC02947F2A373-800C
1 Fault Found:
13679388 - Databus
U1123 00 [00001000] - Received Error Message
[Tip-TNF 232397]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 46
Reset counter: 169
Mileage: 32484 km
Date: 2024.04.04
Time: 10:45:10
-------------------------------------------------------------------------------
Address 13: Auto Dist. Reg (J428) Labels:| 2Q0-907-572.clb
Part No SW: 2Q0 907 572 T HW: 2Q0 907 572 B
Component: ACCCONTIMQB H07 0383
Dataset Number: V03935348VG 0001
Coding: 320067C318FF8728749C812480408700000000000000000004
Shop #: WSC 00033 790 00112
ASAM Dataset: EV_ACCMRRCONTIVW376 003018
ROD: EV_ACCMRRCONTIVW376_003.rod
VCID: 45D74388E526F2C25C5-8010
No fault code found.
-------------------------------------------------------------------------------
Address 15: Airbags (J234) Labels:| 5Q0-959-655.clb
Part No SW: 5QF 959 655 AF HW: 5QF 959 655 AF
Component: Airbag VW22 015 0753
Revision: -------- Serial number: 003018KPB0BLKY Dataset Number: V03935350NU 0001
Coding: 98CCC0C0000000005C5400CF000C00000065
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_AirbaVW22TS6VW48X 001036
ROD: EV_AirbaVW22TS6VW48X.rod
VCID: 1A6DC0F43C18AD3AC17-804E
Crash sensor for side airbag: driver side:
Subsystem 1 - Part No SW: ----------- HW: 454 003 105 21
Component: SideSensor_Df 008 0887
Serial number: 3570000000017759C45M
Coding: 2D2D2D
Front Passenger's Side Airbag Crash Sensor:
Subsystem 2 - Part No SW: ----------- HW: 454 003 105 21
Component: SideSensor_Pf 008 0887
Serial number: 3580000000045959C45Q
Coding: 2D2D2D
Rear Side Airbag Crash Sensor (on driver's side):
Subsystem 3 - Part No SW: ----------- HW: 454 802 306 21
Component: SideSensor_Dr 301 0148
Serial number: 3510011595C1E000000E
Coding: 2D2D2D
Passenger side rear thorax airbag crash sensor:
Subsystem 4 - Part No SW: ----------- HW: 454 802 306 21
Component: SideSensor_Pr 301 0148
Serial number: 3520068595C1E000000R
Coding: 2D2D2D
Crash sensor for front airbag: driver side:
Subsystem 5 - Part No SW: ----------- HW: 454 800 706 21
Component: FrontSensor_D 304 0149
Serial number: 35500DDA2601D000000S
Coding: 2D2D2D
No fault code found.
-------------------------------------------------------------------------------

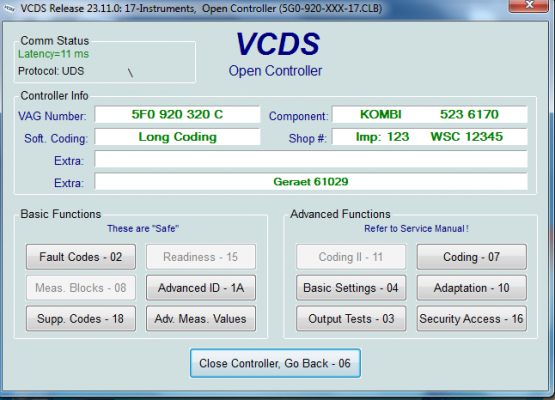

Address 17: Instruments (J285) Labels:| 5G0-920-XXX-17.clb-SRI3
Part No SW: 5F0 920 320 C HW: 5F0 920 320 C
Component: KOMBI 523 6170
Dataset Number: V03935323BN 0005
Coding: 04AC021A6F800008018836431001000080000000
Shop #: WSC 12345 123 61029
ASAM Dataset: EV_DashBoardVDDMQBA0 001046
ROD: EV_DashBoardVDDMQBA0_001_VW37.rod
VCID: 1E65CCE42030C11A3DF-804A
3 Faults Found:
16777018 - Function Restricted due to Interrupted Communications
U1110 00 [00001000] - -
[Tip-TNF 225950]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 2
Reset counter: 145
Mileage: 32503 km
Date: 2024.04.08
Time: 14:36:57
16777056 - Function Restricted due to Interrupted Communications
U1110 00 [00001000] - -
[Tip-TNF 195888]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 2
Reset counter: 145
Mileage: 32503 km
Date: 2024.04.08
Time: 14:36:57
16777030 - Function Restricted due to Interrupted Communications
U1110 00 [00001000] - -
[Tip-TNF 244563]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 6
Fault Frequency: 2
Reset counter: 145
Mileage: 32503 km
Date: 2024.04.08
Time: 14:36:57
-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533) Labels:| 3Q0-907-530-V1.clb
Part No SW: 3Q0 907 530 AL HW: 3Q0 907 530 E
Component: GW MQB High 524 5463
Serial number: 05072111601314 Dataset Number: V03935336MW 0003
Coding: 030500F42F085700E9140258180F00010001070000000000000000000000
Shop #: WSC 00033 790 00122
GVL: 01463C0008000600409C80000000C80010000000000200000000000000000000
ASAM Dataset: EV_GatewNF 013026
ROD: EV_GatewNF_VW37.rod
VCID: 79AFFF78D95E462268D-802C
Generator:
Component: 5-01-14-01-04
Multifunction steering wheel control module:
Subsystem 2 - Part No SW: 5FA 919 719 H HW: 5FA 919 719 H
Component: E221__MFL-PR6 H02 0020
Serial number: PR6-0440060160210510
Coding: 2F0D00
Battery Monitoring Control Module:
Subsystem 3 - Part No SW: 5Q0 915 181 J HW: 5Q0 915 181 J
Component: J367-BDMConti H03 1051
Serial number: 7588600300210629009A
1 Fault Found:
66052 - Infotainment CAN Bus (SAE Bus E)
U0065 00 [00001000] - Performance
[Tip-TNF 205553]
Intermittent - Confirmed - Tested Since Memory Clear
Freeze Frame:
Fault Priority: 2
Fault Frequency: 3
Reset counter: 145
Mileage: 32503 km
Date: 2024.04.08
Time: 14:36:52
Terminal 30 power supply: 13.4 V
Terminal 15: On
-------------------------------------------------------------------------------
Address 2B: Steer. Col. Lock (J764) Labels:| 1EA-905-861.clb
Part No SW: 2Q0 905 861 B HW: 2Q0 905 861 B
Component: ELV-MQBB H09 0040
Serial number: 21000196476008
Coding: 0000000000000000
Shop #: WSC 00000 000 00000
ASAM Dataset: EV_ELVMarqMQBA0 002004
ROD: EV_ELVMarqMQBA0_VW37.rod
VCID: 323D085444A8757AE97-8066
No fault code found.
-------------------------------------------------------------------------------
Address 36: Seat Mem. Drvr (J810) Labels:* None
Part No SW: 5Q0 959 760 F HW: 5Q0 959 760 F
Component: Sitzmemory H10 0026
Serial number: Y0007UEO31050 Dataset Number: V03935303DM 0007
Coding: 001800020000050001C480808180000000008181000000D400
Shop #: WSC 12345 123 61029
ASAM Dataset: EV_SeatMemorDriveSide 002022
ROD: EV_SeatMemorDriveSide.rod
VCID: 40D9529CFA04D7EA6F3-8014
No fault code found.
-------------------------------------------------------------------------------
Address 42: Door Elect, Driver (J386) Labels:| 5QX-959-X93-42.clb
Part No SW: 5Q4 959 593 P HW: 5Q4 959 593 P
Component: TSG FS 011 0912
Serial number: 0000448311188 Dataset Number: V03935341BM 0004
Coding: 00351322D200020000001000
Shop #: WSC 12345 123 61029
ASAM Dataset: EV_DCU2DriveSideMAXHCONT 001005
ROD: EV_DCU2DriveSideMAXHCONT_VW41.rod
VCID: 52FD68D42468557AC97-8006
Rear Driver Side Door Control Module:
Subsystem 1 - Part No SW: 5Q0 959 407 E HW: 5Q0 959 163 C
Component: FOND_FHSG_DRV 007 0011
Serial number: 00000000000052600666
Coding: 210000
No fault code found.
-------------------------------------------------------------------------------
Address 44: Steering Assist (J500) Labels:. 5WA-907-14X-V1.clb
Part No SW: 5WA 907 145 M HW: 5WA 907 145 C
Component: BASGEN1MQB37 502 1051
Serial number: 00189903 Dataset Number: V03935342PP 0003
Coding: 01000100010000010001020101000100000001010100
ASAM Dataset: EV_SteerAssisBASGEN1MQB37 009050
ROD: EV_SteerAssisBASGEN1MQB37_009_VW27.rod
VCID: 54F16ECC1E7C5B4ADBB-8000

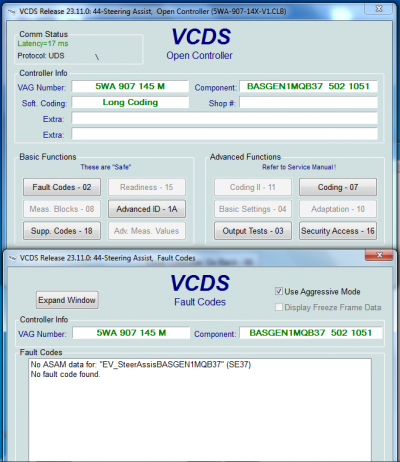

No ASAM data for: "EV_SteerAssisBASGEN1MQB37" (SE37)
No fault code found.
-------------------------------------------------------------------------------
Address 4B: Multifunc. Module (J745) Labels:. 3Q0-907-338-V2.clb
Part No SW: 3Q0 907 338 E HW: 3Q0 907 338 K
Component: FCM MQB Low 005 0367
Serial number: 21072110523030 Dataset Number: V03935353AZ 0001
Coding: 000000070900064201000940000000000000000000000000000000000000
Shop #: WSC 00033 790 00112
ASAM Dataset: EV_MultiModulContiVW48X 003003
ROD: EV_MultiModulContiVW48X_003.rod
VCID: 372B3940AFCA9052DE9-8062
No ASAM data for: "EV_MultiModulContiVW48X" (SE37)
No fault code found.
-------------------------------------------------------------------------------
Address 52: Door Elect, Pass. (J387) Labels:| 5QX-959-X92-52.clb
Part No SW: 5Q4 959 592 P HW: 5Q4 959 592 P
Component: TSG BFS 011 0912
Serial number: 0000448319983 Dataset Number: V03935341BN 0004
Coding: 00351122DE00020000001000
Shop #: WSC 12345 123 61029
ASAM Dataset: EV_DCU2PasseSideMAXHCONT 001005
ROD: EV_DCU2PasseSideMAXHCONT_AU49.rod
VCID: 51FF67D8216E2E62F0D-8004
Rear Passenger Door Control Module:
Subsystem 1 - Part No SW: 5Q0 959 408 E HW: 5Q0 959 164 C
Component: FOND_FHSG_PSG 007 0011
Serial number: 00000000000052736265
Coding: 390000
No fault code found.
-------------------------------------------------------------------------------
Address 5F: Information Electr. (J794) Labels: None
Part No SW: 575 035 868 B HW: 575 035 868
Component: MU-O-N-R2 H56 0870
Serial number: WG8LGM060721000 Dataset Number: V03935336RK ER01
Coding: 43260000000000000000000000000000000000000000000000
ASAM Dataset: EV_MUOIMQB 001002
ROD: EV_MUOIMQB_001_VW27.rod
VCID: 211FF718114EFEE200D-8074
Subsystem 1 - Part No SW: 5FJ 919 606 HW: 5FJ 919 606
Component: ABT_High-2 H57 9130
Serial number: SEZ6ZHY2032940
Subsystem 2 - Part No SW: V03 959 809 TL HW: -----------
Component: MRM 2021/22 --- 5043
Serial number: --------------------
No ASAM data for: "EV_MUOIMQB" (SE37)
No fault code found.
-------------------------------------------------------------------------------
Address 6D: Trunk Elect. (J605) Labels:. 5Q0-959-107.clb
Part No SW: 5WB 959 107 HW: 5WB 959 107
Component: HDSG-Modul H04 0430
Revision: -------- Serial number: A2-C767-1200-5 Dataset Number: V03935329KV
Coding: 1908
Shop #: WSC 00033 790 00112
ASAM Dataset: EV_DeckLidCONTIAU536 001001
ROD: EV_DeckLidCONTIAU536_AU37.rod
VCID: 0D47BBA8FDD64A82545-8058
No ASAM data for: "EV_DeckLidCONTIAU536" (SE37)
No fault code found.
-------------------------------------------------------------------------------

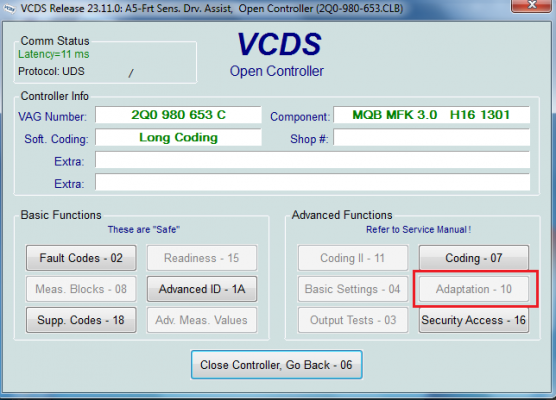

Address A5: Frt Sens. Drv. Assist (R242) Labels:. 2Q0-980-653.clb
Part No SW: 2Q0 980 653 C HW: 2Q0 980 653
Component: MQB MFK 3.0 H16 1301
Serial number: E79132510211910 Dataset Number: V03935343HT 0002
Coding: 00030888014AC020889F00001020002000018000000000000000000000000000
ASAM Dataset: EV_MFK3ValeoMQB 007042
ROD: EV_MFK3ValeoMQB_007_VW27.rod
VCID: 35373348B5C66242CC5-8060
No ASAM data for: "EV_MFK3ValeoMQB" (SE37)
No fault code found.
-------------------------------------------------------------------------------
Address BB: Door Rear Drv
Cannot be reached
-------------------------------------------------------------------------------
Address BC: Door Rear Pass
Cannot be reached
-------------------------------------------------------------------------------
Address CA: Sunroof (J245) Labels:| 4M0-907-594.clb
Part No SW: 4K0 907 594 AC HW: 4K0 907 594
Component: SAD_STG_1 006 0002
Dataset Number: V03935330LA 0002
Coding: 608040532602
Shop #: WSC 00033 790 00112
ASAM Dataset: EV_SunRoofCONTIAU736 009011
ROD: EV_SunRoofCONTIAU736_009_VW37.rod
VCID: 75B7F348F54622420C5-8020
No fault code found.
End----------(Elapsed Time: 01:58, VBatt start/end: 14.5V/14.5V)-----------
